One of the most obvious changes in Data Vault 2.0 is the introduction of hash keys in the model. These hash keys are highly recommended because of the many advantages. Hash keys do not only speed up the loading process; they also ensure that the enterprise data warehouse can span across multiple environments: on-premise databases, Hadoop clusters and cloud storage.
Let’s discuss the performance gain first: to increase the loading procedures, dependencies in the loading process have to be minimized or even eliminated. Back in Data Vault 1.0 sequence numbers were used to identify a business entity and that had to include dependencies during the loading process as a consequence. These dependencies have slowed down the load process what is especially an issue in real-time-feeds. Hubs had to be loaded first before the load process of the satellites and links could start. The intention is to break these dependency by using the hash keys instead of sequence numbers as the primary key.
Business Keys vs Hash Keys
In advance, business keys may be a sequence number created by a single source system, e.g. the customer number. But, business keys can also be a composite key to uniquely identify a business entity, e.g. a flight in the aviation industry is identified by the flight number and the date because the flight number will be reused every day.
In general: a business key is the natural key used by the business to identify a business object.
While using the business keys in Data Vault might be an option, it is actually a slow one, using a lot of storage (even more than hash keys). Especially in links and their dependent satellites, many composite business keys are required to identify the relationship or transaction / event in a link – and to describe it in the satellite. This would require a lot of storage and slow down the loading process because not all database engines have the capability to execute efficient joins on variable length business keys. On the other hand we would have too many columns in the link, because every business key must be a part of the link. The issue at this point is that we also have different data types with different lengths in the links. This issue is exaggerated because it is also required to replicate the business keys into their satellites. To guarantee a consistent join performance, the solution is to combine the business keys into a single column value by using hash functions to calculate a unique representation of a business object.
Massively Parallel Processing (MPP)

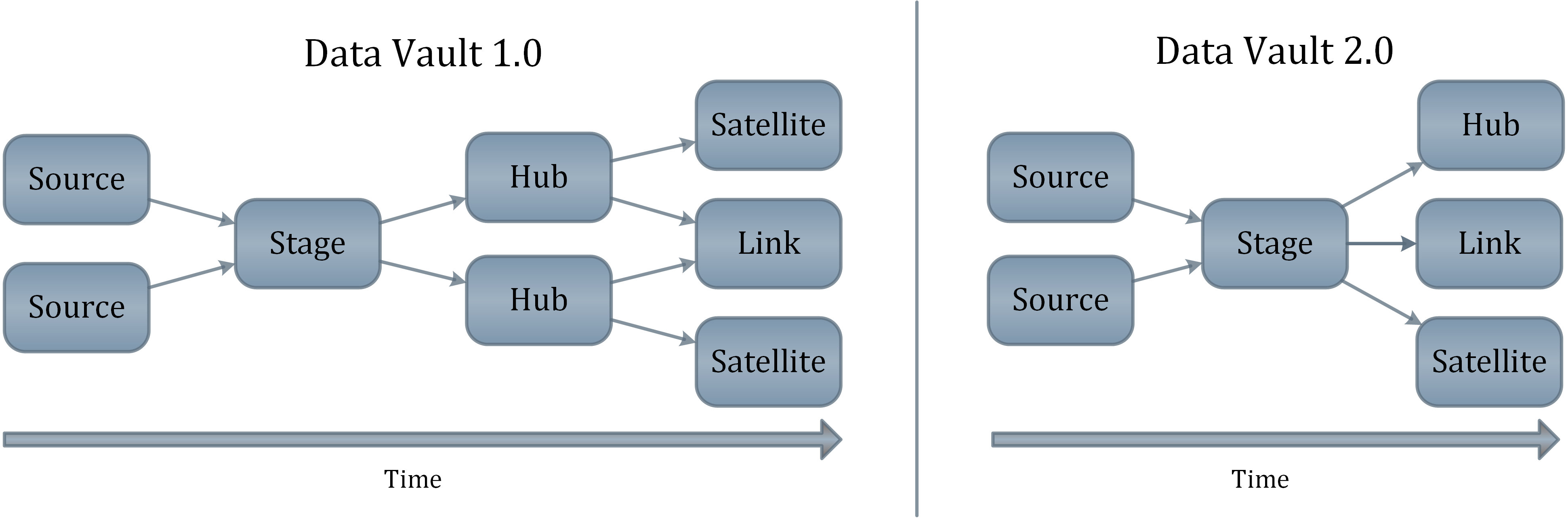

Due to the independence during the load process of hubs, links and satellites, it is possible to do that all in parallel.
The idea is to use the fact that a hash key is derived from a business key or combination of business keys without the need of a lookup in the a parent table. Therefore, instead of looking up the sequence of a business key in a hub before describing the business key in the satellite, we can just calculate the hash key of the business key. The (correct) implementation of the hash function ensures that the same semantic business key leads to exactly the same hash key, regardless of the target entity loaded.
Hash Keys to Join ApacheTM HadoopⓇ Data Sets
Without hashing the load to HadoopⓇ or NoSQL requires a lookup on the hub or link sequence in the relational system before it can insert or attach it’s data. Hashing instead of sequencing means that we can load in complete 100% parallel operations to all hubs, all links, all satellites, and enrich all HadoopⓇ or NoSQL based documents in parallel at the same time. It also then allows to join across multiple heterogeneous platforms – from Teradata Database to ApacheTM HadoopⓇ for example.
The hash difference column applies to the satellites. The approach is the same as with the business keys, only that here all the descriptive data is hashed. That reduces the effort during an upload process because just one column has to be looked up. The satellite upload process first examines if the hash key is already in the satellite, and secondly if there are differences between the hash difference values.
The image above shows the process if the source system sends you a full data delivery. The point where to hash the values should be during the way into the staging area, because at this point there is time to check for “duplicate collisions”, and handle hashing issues before continuing with the data in the Data Vault.
What Hash Function to use
There are many hash functions to choose from: MD5, MD6, SHA-1, SHA-2, and some more. We recommend to use the MD5 algorithm with a length of 128 bit in most cases, because it is most ubiquitously available across most platforms, and has a decently low percentage chance of duplicate collision with an acceptable storage requirement.
An additional advantage hashing brings with it, is that the hashes have the same length and are from the same data type, from which a performance improvement arises. Furthermore, hash values are generated, so they never get lost and can be recreated.
Hashing has a very small risk: the collision. That means, two different data will get the same hash value. But, the risk is very small, for example: In a database with more than one trillion hash values, the probability that you will get a collision is like the odds of a meteor landing on your data center.
Hash Keys are not mandatory in the Data Vault, but they are highly recommended. The advantages of
- massively Parallel Processing (MPP),
- data load performance,
- consistency and
are indispensable and can not be reached with Sequences or Business Keys.
Hash keys are no silver bullet…but they provide (much) more advantages than they introduce disadvantages (storage).
